Shader Recipes

Creating shading networks can be as simple as plugging a fractal into a color parameter, but there are certain combinations of nodes that can only be unlocked with secret handshakes. Creating these combinations is simple enough . . . if you know how to do it, and that's what we've put together a cookbook of shading network recipes. You'll find some of these combinations are used a lot, if not all of the time, and an understanding of them is essential to building shaders that serve any purpose at all. On the other hand, some of these recipes cook up results that won't be used often but do serve to showcase different eclectic effects that can be accomplished with Slim.

Each recipe is composed of a simple assemblage of nodes, effectively small branches. These branches can be built into larger complicated shaders by using the basic ideas behind each concoction.



Projection techniques are the bread and butter of shading CG surfaces, whenever natural surface parameterization won't suffice. Projections are used everywhere from mapping textures to mixing opacity values to animating displacements, and because of that it's important to know how to incorporate a projection into your Slim shading networks.

Building a projection into a shading network is simple and routine task, once all the details are understood. Here we'll build a planar-z projection for a color image into a shading network. Slim supports the comprehensive set of projection techniques, and the techniques shown here transfer to projecting any kind of float or function using any of the projection types.

Building a Projection into a Shading Network

1) On the top level we have a Blinn.
2) An Image File Function is plugged into the Blinn's color parameter.
3) Next a Projection Manifold is connected to the Image File function.
4) Finally a Surface Point Manifold connects to the Projection.

That's all it takes to create a projection. Of course, it's important to also properly configure all of the nodes creating this projection. For a more detailed view of configuring a projection, read on . . .

Important Details of Projection Configuration

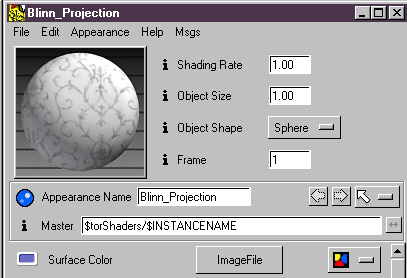

1) First off, connect an Image File to the surface color parameter of the shading model in question, in this case a Blinn.

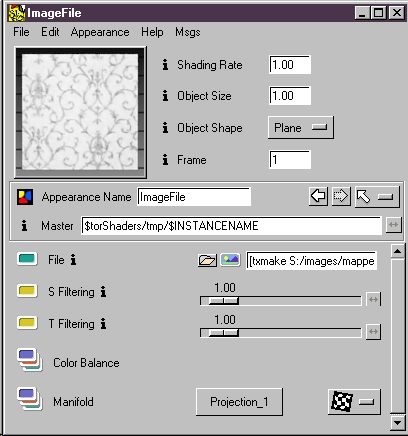

2) Select your image file (under the File folder icon).

Next convert tif images to Pixar's efficient texture format. (Review using textures here.)

With the image properly configured (It should render in the swatch) attach the Projection manifold at the bottom of the appearance editor (as shown).

3) The Projection Manifold is where the type of projection is defined. The default projection is PlanarZ, but other projection types can be selected from the pull-down menu.

With the projection properly configured, attach a Surface Point manifold (as shown).

4) The Surface Point Manifold is where essential information is provided to MTOR.

The MTOR coordinate system shape name must be entered into the Space parameter. The projection will be cast from the position of the coordinate system.

When entering the coordinate system name, use the syntax:
[coordsys SysShape]
where "SysShape" is the shape name of your coordinate system (as shown).

That's it!

Projection References:

Projecting Textures onto Surfaces

Tutorial: Basic Texture Projection


Lighting is a key element in most CGI imagery.  Slim provides facilities for developing light shaders and for tweaking lighting effects in your scenes.  Special features are available to allow you to control primary and global illumination effects.

Slim and MTOR come with a wide variety of shaders for special effects. These are described elsewhere and you should take the time to familiarize yourself with them.  As a rule, if a shader already exists that provides you with the effect you need, then use it!  No need to populate our overburdened world with a bunch of redundant shaders.

Lights come in a few distinct flavors.  First, we can discriminate lights by the geometry of their light rays.  Light that emanates from a position within your scene and whose rays diverge is said to be local. Contrast this with light that appears to be coming from an infinite distance and whose rays are strictly parallel.  Such lights are called distant lights and their shadows have a distinctive quality.

We can also discriminate lights by the kind of light that they emit.  Ambient light, for example, never causes specular highlights.  Slim supports the notion of Environment Lights - lights which emit a special kind of light that's only visible to functions that are looking for it.   The idea is to construct a system of collaborating shaders and so  we wire special reflection and refraction sampling functions (like Collect Reflections) into our surface shaders.  Now, when we include one or more Environment lights in our scene, they'll be detected by all surface shaders that want reflections.  The power of this approach lies in the ability to control global illumination effects through a small number of controls associated with the environment lights rather than through controls associated with each surface shader in our scene.  Sometimes per surface reflections are desirable and in this case we can simply access environments through Environment Maps or Reflection Maps that are wired directly into our surface shaders.


Building shadows into Shading Networks is straightforward. For spot lights and distant lights it's simply a matter of connecting a shadow map calculation to the light. You can either connect a regular shadow map or a soft shadow map to spot and distant lights. You'll find point lights have shadow map capability built right in, since they only support one type of shadow.

Here we'll show how to build a regular shadow map into a spot light.

1) The top node is a Spot Light.
2) A Shadow Map Float is connected to the spot's "Shadow" parameter and configured (See below).
3) That's it. (Note: a Surface Point Light Manifold is attached to the Shadow Map by default for you.)

Here's how the Shadow map is configured:

To configure shadows properly two things must be done.

1) Enable shadows. This is enabled by default. "Frequency" is already set to "Every Frame". This will cause a shadow to be created for each frame of an animation. This setting can be changed to "Once per Frame" if the shadow only needs to be calculated once (for stationary geometry, for instance).

2) Reference the shadow map. To reference the shadow select "Shadow" from the Reference Texture pull-down menu (found in the "File" parameter).

For more information about generating shadow maps see: Using Computed Maps.

Shadow References

Computed Maps:  Automatic Shadows, Reflections and Environments

Tutorial:  Shadows & Shadow Maps

Tutorial:  Soft Shadow


The Slide Projector Light

An image can be projected from a light source . . . like a slide projector casting slides onto a home movie screen. Using this technique, an arbitrary amount of objects can be colored by a single image. In the example below, an image of a street scene has been projected onto two boxes and the floor.

Here's how you can build your own slide projector shading network.

For a Spot Light:

  1. Create a Spot Light shader.
  2. Connect an Image File to the Spot Light's color parameter.
  3. Add the image file of your choice.
  4. Connect a Projection to the Image File's manifold.
  5. Set the projection type to PlanarZPersp.
  6. Set the field of view to match the spotlight, either by entering the cone angle in degrees or with the simple TCL expression: 2*deg($CONEANGLE)
  7. Now connect a SurfacePoint to the Projection's manifold.
  8. Enter shader as the shader space defined in the Coordinate System parameter.
  9. Project away!

Here's how the shading network should look in the call graph:

Directional Light modifications:
Use the same process as above with a couple changes.

  1. Use regular PlanarZ projection instead of PlanarZPersp.
  2. Parent an Coordinate System under the Directional Light.
  3. Reference the Coordinate System from the SurfacePoint's Coordinate System parameter.
  4. Also reference the Coordinate System from the Directional light's Shader Space parameter.

Example Maya Scene

Explore this example further by examining the Maya scene file, available in the tutorial scene files. You'll find it here: mtor/scenes/light_texture_projection/

The Barn Door

Distant light is very useful in Computer Graphics because it simulates a common lighting effect, parallel light beams, like the sun. Distant lights have a global effect, illuminating the entire scene. This is fine for sunlight, but often its helpful to constrain the area that a distant light illuminates.

To that end, Slim's Distant Light provides a "Barn Door" parameter to allow you to define an illumination rectangle in a manner analogous to a spotlight's cone angle. Usually, Barn Door will illuminate a one unit square.

Note: The Barn Door is enabled by default!
This can be disabled via this nifty parameter.

Important: A coordinate system may also be parented under the distant light to intuitively control the size and ratio of the Barn Door effect. Be sure to reference the shape name of the coordinate system in the distant light's Shader Space parameter.

A couple of distant lights with barndoor enabled..

The additional benefit of this approach relates to shadow map generation, allowing shadow maps to be placed quite accurately, including only those objects needed to cast shadows. Shadows will have a higher quality when a shadow map is tightly bound around shadow casting objects and at the same time keeping shadow maps to a minimal resolution. It's important to note that even with the Barn Door effect disabled, that a coordinate system can define a shadow map, allowing a distant light to illuminate an entire scene while generating an arbitrarily constrained shadow map. Here are a few techniques used to generate shadow maps with distant lights:

  1. Normally, MTOR uses the bounding box of objects (those objects with shadows enabled) to calculate shadow maps. Sometimes it suffices to turn off shadows on all objects which won't be casting shadows into a scene, like floors for example.

  2. For more precision, the Barn Door coordinate system can be used to generate a shadow map that is referenced by the distant light, using a standard map generator. Be sure to refer to the coordinate system's shadow map in the distant light. (Review technique here.)

  3. Using an alternatively precise method, a Maya Set can be named in the Shadow Map's "Objects in Map" parameter. Here only the objects you specify will appear in the shadow map, with the map determined by their collective bounding boxes.

Projecting Light Color

Let's get cracking and develop a wacky light source like that responsible for this picture.

We start by creating an instance of the spot light source:

File -> Create Appearance -> Light -> Spot

Next we provide a connection for the LightColor parameter.  Here, we've connected a wave generator function based on the angle in the XY plane to give us our pattern of light and dark.  When developing light shaders it's important to use some variation of the SurfacePoint manifold with the Coordinate System parameter set to shader.  This ensures that the pattern grows in the space of the light rather than the surface or camera.

To get shadow effects in our light we connect the Shadow map function into the shadow parameter.  In the Shadow function we're provided with controls to cause the generation of a shadow map.  We must also connect the Shadow function into a SurfacePoint manifold.  And here's an important step.  When accessing shadow maps it's important that you use a manifold in a special coordinate system called current. Also we mustn't forget to fill in the shadow map parameter itself.

And that's how you do it.  Now let's say we want textured shadows...

For additional effects, like projected images, refer to the Slide Projector Light example, which also has an example Maya scene.

Deep Shadows: Colored Shadows

Deep shadows are as easy to use as normal shadow maps, but they bring some powerful new features to the table. One of these features is colored shadows, which aren't possible with normal shadow maps.

In this example below, we have some sort object with varying kinds of transparency. Its disc shaped leaves are clearly colored and semi-transparent. The body of the object has a procedural functions changing the opacity over the entire surface.

Below we see the result of a typical shadow map, it's just black.

Standard Shadow Map

Below is an image of colored shadows created with a deep shadow map. Deep shadows carry a larger overhead than standard shadows, but in those situations where it's needed, it's worth the effort.

Deep Shadow Map

Setting Up Deep Shadows

Generating Deep Shadows is as simple as creating a normal shadow map.

  1. Create a light and attach a Shadow Map function.
  2. Switch "Shadow Type" to deep shadow.
  3. Reference the shadow map in the "File" parameter as you would normally.
  4. Render. A deep shadow is generated.

Your surface shaders need to be properly set up for Deep Shadows, which means:

  1. Attach your semi-transparent shaders with an Ensemble and set the "Cast Shadows" parameter to "shade" so that the shader to be evaluated during shadow map generation (otherwise the shadow will be opaque). The default setting is opaque (as it's cheaper to not evaluate every shader during shadow map generation.)
  2. The deep shadow colors the shadow based on opacity color, not surface color. For colored shadows plug the color into the opacity. Also note the deep shadow actually inherits the inverse color of the opacity. Use the Invert Color function to plug into the opacity.

Example Maya Scene

Maybe the best way to grok what's going on here is to look at the Maya scene file, which has been included for you in the tutorial scene files. You'll find it here: mtor/scenes/transparent_shadows/

More Information
For more information about Deep Shadows refer to: the MTOR Deep Shadows doc.

Deep Shadows: Fake Caustics

Fake caustic effects can be generated using Deep Shadows. Fake caustics, while not physically correct, are often sufficient to fool most viewers and are often much faster than generating the caustics with photon maps. To create this effect, the objects casting caustics have a different shader applied during the generation of the deep shadow map, using the Adaptor. What follows is the general workflow.

Fake caustics created with Deep Shadows

Setting Up Fake Caustics

Fake caustics were set up in this example this way:

  1. A spot light is configured to cast a Deep Shadow map.
  2. An Ensemble Adaptor is attached to the sphere. (Adaptors allows different shaders to be attached during different conditions, like shadow map generation.)
  3. An Ensemble is added to the first condition for the shadow pass
  4. A second Ensemble is attached to the Adaptor's second condition

Example Maya Scene #1

A Maya file of this scene is provided for further examination. It is part of the tutorial scene files. You'll find it here: mtor/scenes/deep_shadows/

Fake Caustics Example #2: Sea Scene

More fake caustics created with deep shadows

In this scene the caustic effect on the ground was created with deep shadows, in the same manner as was used to create the effect in the simpler scene directly above.

Example Maya Scene #2

A Maya file of this scene is provided for further examination. It is part of the tutorial scene files. You'll find it here: mtor/scenes/deep_shadows/

Rim Light

Here is a simple scene file that uses a Slim shading network to create the effect of a rim light.

  1. Create a Distant Light.

  2. Connect a Facing Foward to the Distant Light's intensity (KI).

  3. Invert the Facing Foward.

  4. Attach the shader to Maya light and render.

A rim light effect.

Example Maya Scene

A Maya file of this scene is provided for further examination. It is part of the tutorial scene files. You'll find it here: mtor/scenes/rim_light/



You can add reflection effects to directly to surface shaders.

Slim shading networks support all types of reflections and refractions - computing Environment and Reflection Maps, collecting Environment Lights, Ray Tracing and so forth. All of these methods of generating reflections can be built into a shading network through the use of Additive FX shading model.

Additive FX is a uniquely powerful shading model. With it you can add special effects, like reflections, to other shading models. Simply connect a shading model to the Additive FX. Next connect a reflection effect, and that effect will be added to the shading model.

A few uses for Additive FX are Reflection Maps, Environment Maps, and Environment Lights.

Let's work through working with Additive FX . . .

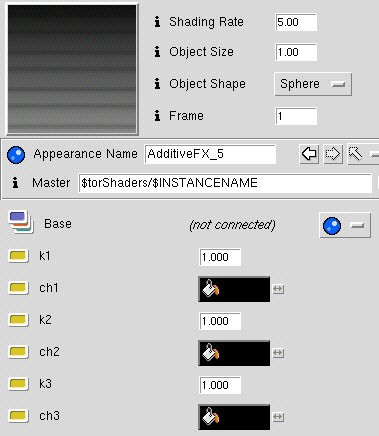

Using Additive FX

A base shading model is attached to the Base parameter. Effects can be connected to the different channels, Ch1, Ch2, Ch3. These channels are added to the base shading model, for the creation of many kinds of effects.

A shading model is connected as the Base,
and then reflection effects can be added to Ch1, Ch2, and Ch3.



Ensembles & Additive FX

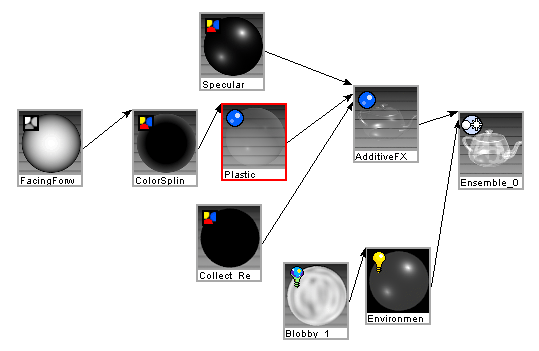

An Ensemble along with an Additive FX can visualize certain reflections, like fake environments. Ensembles are special in the way that they can accept connections from multiple shader types, (lights, surfaces, displacements) and put them all together.

Here we've connected an Additive FX and an environment light to an ensemble. The Additive FX has a Collect Reflections connected to it. The Ensemble magically displays the reflection of the environment light for your viewing pleasure.

Thank you, Additive FX!



Reflection Maps

To get planar reflection maps via Slim.

  1. File->CreateAppearance->Surface->Additive FX

  2. Plug a base shadingmodel into AddtiveFX, here we used Blinn.

  3. Plug an instance of ReflectionMap into the ch1 parameter of AddtiveFX.

  4. Cause the creation of a Reflection map by setting the Frequency parameter of ReflectionMap to Every Frame.

  5. Add a reference to the new reflection map in the Reflection Map parameter of ReflectionMap function:  [refmap $OBJNAME].

  6. Attach the AddtiveFX shader to the ground plane and make sure that the ground plane doesn't cast reflections.  In Maya there's a per object render stat that controls this.

Et voila!


Environment Maps

It's quite easy to add reflection effects to a surface shader and, in fact, we use many of the same steps described above.

  1. First we create an instance of AdditiveFX and choose the base shading model.
  2. Now for the ch1 connection we choose Environment Map.  Environment Map looks up environment colors in the texture map provided.
  3. Cause the creation of a Reflection map by setting the Frequency parameter of Environment Map to Every Frame.

  4. Add a reference to the new reflection map in the Reflection Map parameter of Environment Map function:  [refmap $OBJNAME].

  5. Attach the AddtiveFX shader to an object.

  6.  Make sure that the object doesn't cast reflections (we don't want that in the reflection).  In Maya there's a per object render stat that controls this.


Environment Lights

Environment lights are special lightsource shaders that provide environmental reflections in your scene. Often it's the case that you don't need physically accurate environments. When the reflection effects are secondary, usually it's sufficient (and much cheaper to render) to utilize a single "fake" environment. Most environment light shaders serve exactly this purpose.

You can build any number of environment lights into the shading networks in your scene. Typically, though, a single environment light is sufficent and can be set to affect all "environment-light-aware" shaders in a scene. For a environment light to affect an entire scene, it should be named "world".

To use Environment lights you must first create an environment light:

File -> Create Appearance -> Light -> Environment

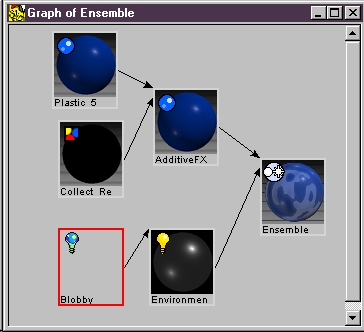

For our example we'll simply connect the EnvMap function into the Environment parameter of our new light shader.  There we can select a standard lat-long environment map from $RMANTREE/lib/textures/street.env.

Next we must cause one or more surface shaders to actively search for environment lights in the scene.  To do this we create an instance of the AdditiveFX shadingmodel:

File -> Create Appearance -> Surface -> AdditiveFX.

There we can wire in a base shading model, say Ceramic, and then connect in an instance of the function Collect Reflections.  This is one function that collaborates with external environment lights.  Plugging this into the ch1 parameter of AdditiveFX will cause the reflection effects to be added to the base shading model.

After we attach the AdditiveFX instance to our sphere and cone we must make sure that the environment light shines on these objects.   We can do this is a few ways:

  1. Attach the light to all surfaces

  2. Attach the light to a point light source in the scene

  3. Name the light shader "world" causing it to be output by default.

Of these options, 2 or 3 is preferable because they result in a single instance of the environment light in the RIB representation of our scene.

And here's our picture with some reflections.

Reflection Falloff: With Adaptors

An adapter allows us to place different shaders on objects under different conditions, depending upon object name, global condition, render pass, etc.

For this example, we'll use an adaptor to create a reflection with falloff. To do this, we'll attach one shader during the reflection pass and then another during the final pass. We'll create a reflection that has a reflection falloff in intensity. The reflection fades the further it is from the surface . . .

A reflection with falloff

In this image, the reflection appears to falloff as the object recedes from the reflecting plane, but all we've done is attach a different shader during the reflection pass. It becomes clearer what's going on when the shader used during the reflection pass is also attached during the final pass . . .

This is the shader used during the reflection pass.

General Workflow
We'll outline the steps to construct this scene.

1) Construct a normal reflection map shader.

2) Create a shader ensemble for the surface of the reflecting object.

3) Create an ensemble adaptor. Switch the controller to "Element Type." Add a new condition and connect the ensemble made in step two.

4) Construct the shader to be applied to the object during the reflection pass. In this example, this shader darkens the basic shader (used for the final pass) using the "Distance" float. It's configured so that the further a surface point is away from the origin, along y, the darker it becomes, creating an appearance of reflection falloff.

5) Add another condition to the adaptor. Connect the new ensemble and enter "reflection" for the condition. This will cause this ensemble to be applied during the reflection pass.

6) Render and tweak.

Example Maya Scene
For further exploration a Maya scene file of the example outlined above is available (as part of the tutorial materials). You'll find it here: ratdocs/rattutorials/mtor/scenes/reflection_falloff/

Ray Tracing

RenderMan supports ray traced reflections, refractions, global illumination and other types of effects. The ray tracing system is straight forward, so ray tracing effects are easy to create, but it also provides interfaces for sophisticated operations.

Ray Traced Refractions

On this ball special refraction effects were created by filtering the color of the refraction.

Refractions created with Swiss Army

Setting Up Refractions

In this example refractions were created this way:

  1. A Swiss Army was attached to the sphere
  2. Reflections and refractions were enabled (using techniques from the Ray Tracing Crash Course).

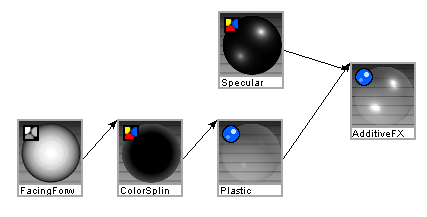

  3. A Color Spline was mapped to the color of refraction, using a Facing Forward float.
  4. The intensity of the refraction was also mapped with the Facing Foward float
  5. A displacement shader was added to the sphere
  6. To accelerate the rendering, the Maya "Appear in Reflections" attribute was disabled for the ball

Example Maya Scene
For further exploration a Maya scene file of the example outlined above is available (as part of the tutorial materials). You'll find it here: ratdocs/rattutorials/mtor/scenes/rays/

Ray Traced Occlusion

Slim's support for Indirect Illumination allows simple shading networks to create occlusion effects. Occlusion can be used to create subtle shading, by determining how much surfaces are covered by other surfaces. Occlusion can be calculated in a separate pass or built directly into normal shaders (using the layered shader, for instance).

In this example we have a pile of several objects. They have an occlusion shader attached to them. There are no lights in the scene. The coloring is determined by how "near" a surface point is to other surfaces. More samples result in a higher quality image. Less samples have more artifacts but are better for previews.

Occlusion created with a simple Slim network
Max Distance "4"
Samples "512"
Max Error "0.1"

Preview quality occlusion
Max Distance "4"
Samples "64"
Max Error "0.5" (which is the default "-1.0")

Setting up an Occlusion Shader

  1. Enable Ray Tracing in the RenderMan Globals
  2. Attach an Ensemble to the objects in the scene
  3. Connect a Constant surface shader to the Ensemble
  4. Connect a Color Spline to the Constant's color parameter
  5. Connect an Occlusion float to the Color Spline

Example Maya Scene
For further exploration a Maya scene file of the example outlined above is available (as part of the tutorial materials). You'll find it here: ratdocs/rattutorials/mtor/scenes/rays/occlusion_shader.mb

Baking Occlusion
Baking occlusion data is an efficient way to reuse indirect illumination data.
Refer to: RAT Tutorial- Baking Occlusion

Ray Traced Output Variables: Ray Depth Probe

Slim provides the ability to request other data than color when ray tracing. One useful attribute other than color is the length of a ray. We can collect these attributes using Traced Output Variables. In the following trivial (yet tricky) case, the ray length has been used to modulate the opacity of the shader.

This techniques has been use to create a "jam" shader, which becomes more opaque the further objects recede into it. In the image notice that the yellow tubes disappear into the jelly ball. See image:

Opacity based on ray length, using Traced Output Variables

This is a difficult effect to create in other ways, but it's relatively straight forward using ray length. When the ball renders, rays are shot from each point on the surface into the jam from the camera direction. The length of the rays are collected and used to modulate the opacity of the surface at each point. Those rays that are short are black, making the surface transparent. Longer rays are white, which makes the surface more opaque. This makes objects that penetrate the surface of the jelly appear to disappear into it. Here's a diagram that outlines the idea:

Using traced output variables is an advanced ray tracing technique which allows the creation of many types of effects beyond this simple example.

Setting up Ray Traced Messaging for the Jam Shader

  1. Create any type of surface shader, Blinn would be adequate
  2. Connect a Color Spline to the Blinn's opacity
  3. Connect a Remap to the Color Spline
  4. Connect a  Ray Traced Messaging float to the Remap
  5. Set the direction of the ray by connecting a View Direction vector to the Direction parameter
  6. In the View Direction vector check the Flip parameter
  7. Render and adjust

Example Maya Scene
For further exploration a Maya scene file of the example outlined above is available (as part of the tutorial materials). You'll find it here: ratdocs/rattutorials/mtor/scenes/rays/



Terrify your friends with cheeky fog effects

Different types of fog effects can be created with fog shading networks. Ramps and other functions can be applied to the various parameters, to create some interesting effects. In the image above a ramp was used to modify the color of the fog, fading from a mixture of yellow and green to black. Here's a simple fog set up:

Creating a fog shading network
1. Create a volume fog node.
2. Add a ramp to the fog's color parameter, and color it.
3. Connect a planar Z projection to the ramp's manifold.
4. Connect a surface point to the projection and use "NDC" as shader space to apply the projection in normalized raster space.
5. Name the fog "world" as this special case name will apply the fog to the entire scene.

Now the volume fog is ready to render. You'll find that volume fog is costly to render, but it can be a useful, if expensive, solution.

Colored Fog

This basic scene was created using Slim's volume fog, without the using raytracing. Deep shadows were used to achieve the colored fog effect. Note that the opacity of the object must be colored to get the correct effect, correctly.

Creating colored fog:

  1. Create volumetric fog with MTOR.

  2. Create a spot light and attach a Slim spot light shader with a shadow map.

  3. Enable Deep Shadows in the spot light shader's shadow map.

  4. Point the light at a semi-transparent object.

  5. Render.

Volumetric effects are computationally expensive. Handle with care.

Colored fog created with deep shadows

Diffuse & Specular Warmth

Sophisticated effects can be created by mapping ramps to the diffuse and specular elements of an objects. These effects range from adding subtle color warmth to fake iridescence.

Adding Color Warmth to Kd
In the image below there are three mushrooms. The first mushroom has a plain "clay" shader attached to it. The second mushroom has a color ramp mapped to its diffuse value, which creates a much more interesting look. It's a rather subtle effect, but it does adds a perceptible "warmth" and character to the object, making it a little less "CG-like." In the third mushroom the color mapping is heavily saturated to more clearly show what is going on here.

Here's the graph of the shader used to map the diffuse values. It's quite simple.
1. Create a shading model (in this case a clay).
2. Connect a Color Spline to the shading model's color parameter.
3. Connect a ColorToGray to the Color Spline.
4. Connect a Diffuse node to the Color To Gray.
5. Tweak and Render.

Adding Color Warmth to Specularity
In the example below color ramps are mapped to the specularity of the objects. A plain shader has been attached to the first object, with no color mapping, just straight speculartiy. In the second mushroom, a ramp has been mapped to the specularity creating a more interesting effect, where the specular highlight turns red as it falls away from the center. Again this adds more character to the object. With the third mushroom we've created fake iridescence by mapping a color spectrum to the specular channel.

Mapping Ramps to specularity is straightforward
1. First a plastic shading model was created.
2. Next a Color Spline connected to the plastic's "Specular Color" parameter.
3. A ColorToGray was then connected to the color spline.
4. A Specular node was then connected to the Color To Gray.
5. The Color Spline's ramp was the edited as desired.

Here's the graph of the shader . . .


Creating the effect of glass, or any shiny transparent object, can be a little tricky with Slim. It's not necessarily difficult, but take a look at a typical surface model, like Plastic. It seems shiny enough, a good candidate for glass, but as its opacity is reduced, its specularity is reduced right along with it. This means when the Plastic shading model is transparent like glass, it has no shininess, and simply won't cut the mustard.

Take our gray torus here. We're going to add a glass shader to it. Actually, we'll create three different shaders that are both transparent and shiny at the same time. The first is very simple, and the second and third become a little more complex.

So here we go . . .

1) Basic Glass

To add a specular highlight to a transparent shading model all we need is to create an Additive FX.

  1. First, wire the transparent plastic to the "Base" parameter.

  2. Now connect a Specular color to "Ch1," first channel.

That's all. Now the Additive FX combines the specular with the plastic, creating a shiny transparent surface, like glass. This is pretty basic. Here's the graph . . .

2) Fancier Glass

Continuing to work with the same shader, we'll add a little more character to the glass, by modulating the opacity of the surface. When we look at transparent objects in the real world, like glass, we notice that the material becomes more opaque at the edges. This is something we can emulate with a Facing Forward float.

  1. Just by plug the Facing Forward into the opacity parameter, and here we've used a Color Spline to affect the subtlety of the effect.

We can see in the image that the object has a little more "substance" now, while still looking transparent.

Here's the graph . . .

3) Fancy Glass

Now we'll add a fake reflection to the object. We'll do this by attaching an environment light to the object.

  1. First create add Ensemble and plug the Additive FX into that.

  2. Next add an Enviroment Light to the Ensemble. (We've connected a Blobby environment to the environment light for better tweaking later.)

  3. To add the effect of the Environment light, add a Collect Reflections to "Ch2" of the Additive FX. (Don't forget this!)

Now this is a reasonably complex glass shader. There's still a lot of room for improvement, however, but it's important to pick shaders with the right amount of complexity. Many times the basic glass is an ample solution.  No reason to go overboard, unless necessary. This shader could be improved with refraction effects, either by faking refractions (not perfect, occasionally useful) with EnvironmentMapPlus or by through the use of a ray server using TraceRefractions.

Here's the graph of the shader . . .


Fakey® Glow

It's possible to create a shader that simulates glows effects. This particular glow effect is not really a glow, only an imitation, being based entirely upon a specially created surface shader (that utilizes Facing Forward float, returning a value depending on how a surface faces the camera). This glow effect can be passable in many cases and is relatively cheap to render. Here is a heavy-handed example of the glow effect . . .

 1) A neon cactus with incandescence.

2) The outer geometry is added and ready for glow shader.

3) Neon cactus with
Fakey® glow attached to the outer geometry.

The Fakey® Glow Shading Network

1) The shading model is a Blinn with a glowing incandescence.
2) A FloatToColor is connected to the Blinn's opacity (providing a float connection for  the Facing Forward.)
3) A Remap is used to finely tune the glow effect.
4) A Facing Forward is plugged into the Remap, modifying Blinn's opactiy. What faces the camera will be white, opaque. The sides will fade to black as they falloff from the camera, creating transparency for the glow effect.

Scene Implementation Details

1) Create glow shader. (See diagram above.) The key is to plug a Facing Forward float into shader opacity.

2) Create the glow geometry. Select the geometry that will be glowing, duplicate it, and resize it to envelop  the original geometry, as the large cactus shell in figure #2.

3) Attach the glow and render and tweak.

TCL Box and RIB Box Example

Here's an example Maya scene file which demonstrates the use of both a TCL box and a RIB box, and then in combination.
Example Maya Scene
For further exploration a Maya scene file of the example outlined above is available (as part of the tutorial materials). You'll find it here: ratdocs/rattutorials/mtor/scenes/tcl_box/
It's probably easiest to look at the RIB box first. It makes about 5 different kind of attribute based calls. Some of them don't require the TCL box, but the last couple, which refer to a TCL variable and a TCL proc do. In one example the TCL proc appends a directory like set of chars to the standard Maya stringAttribute.

Note: This is set in the RenderMan Globals to pop up "nedit" as the renderer, just to see if the stuff made it in to the RIB. If nedit isn't on your machine, set up the custom renderer in the Render Globals Custom Tab to be your favorite editor, like notepad.


Pixar Animation Studios
(510) 752-3000 (voice)   (510) 752-3151 (fax)
Copyright © 1996- Pixar. All rights reserved.
RenderMan® is a registered trademark of Pixar.
